CURVED COASTAL DEVELOPMENT

CAMPS BAY DEVELOPMENT

VERGEZICHT APARTMENT DEVELOPMENT

Jenny Mills Architects designed development in Victoria Road Cape Town - front facade full 3D View render

Jenny Mills Architects designed development in Victoria Road Cape Town - front facade

Jenny Mills Architects designed development in Victoria Road Cape Town - bedroom level full 3D View render

Jenny Mills Architects designed development in Victoria Road Cape Town - living level full 3D View render

This development investigation was inspired by the coastal shapes around it. The sinuous shapes are practical allowing offset views and privacy. They blend the varied angles of the street boundaries. Designed with an explorative spirit this property study sought to maximise frontage and views. Often the challenge of coastal design on a slope is to overcome long slithers of apartments with dark rooms buried at the back. The configuration allows for pools on all units.

Rendering Credit: Think 3D & Xpose Studios

Bedroom render by Jenny Mills Architects for Campsbay Development

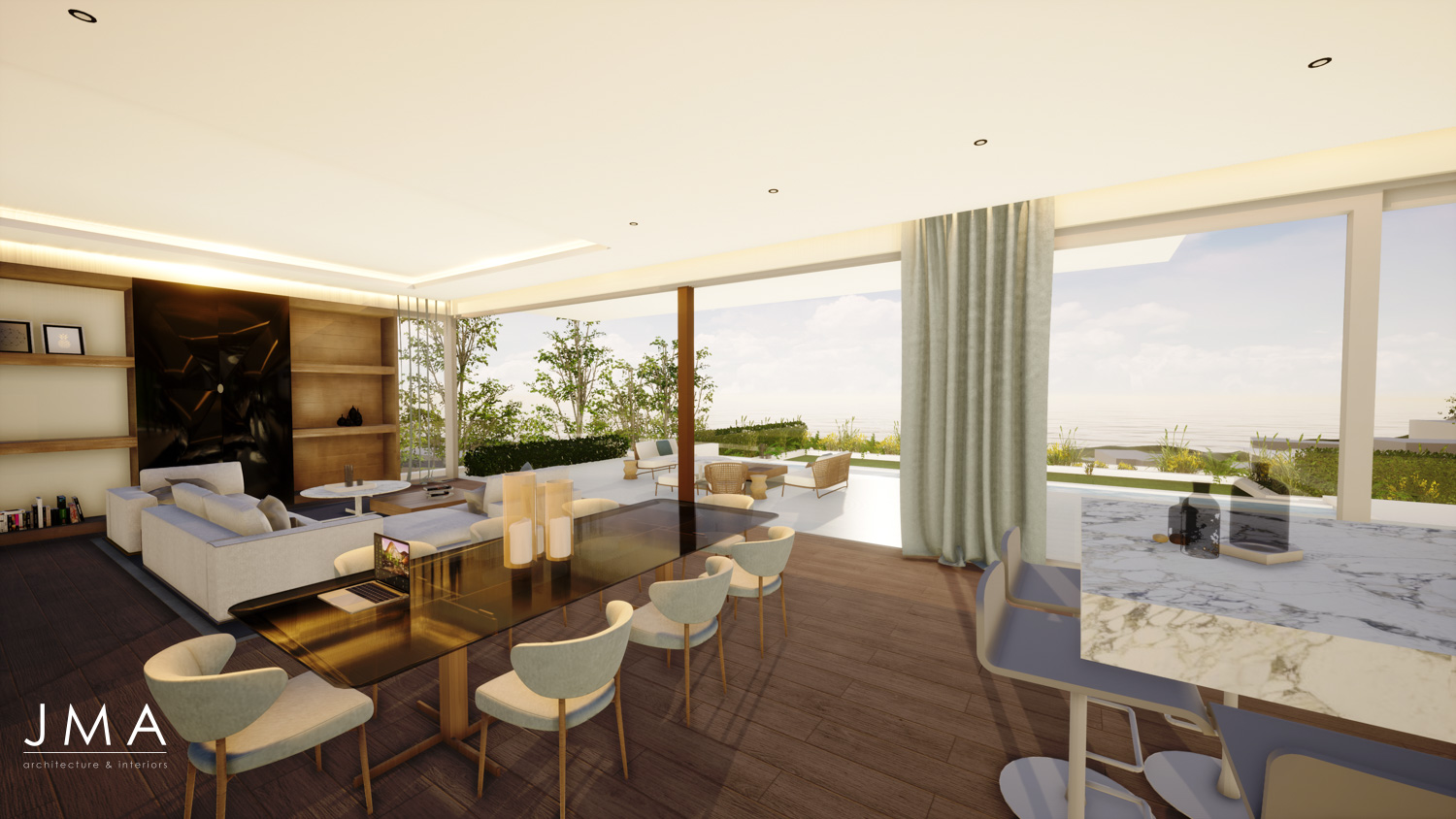

Render of a Campsbay Development of a Upper Unit Living Room by Jenny Mills Architects

Render of a Campsbay Development of a Upper Unit Bedroom by Jenny Mills Architects

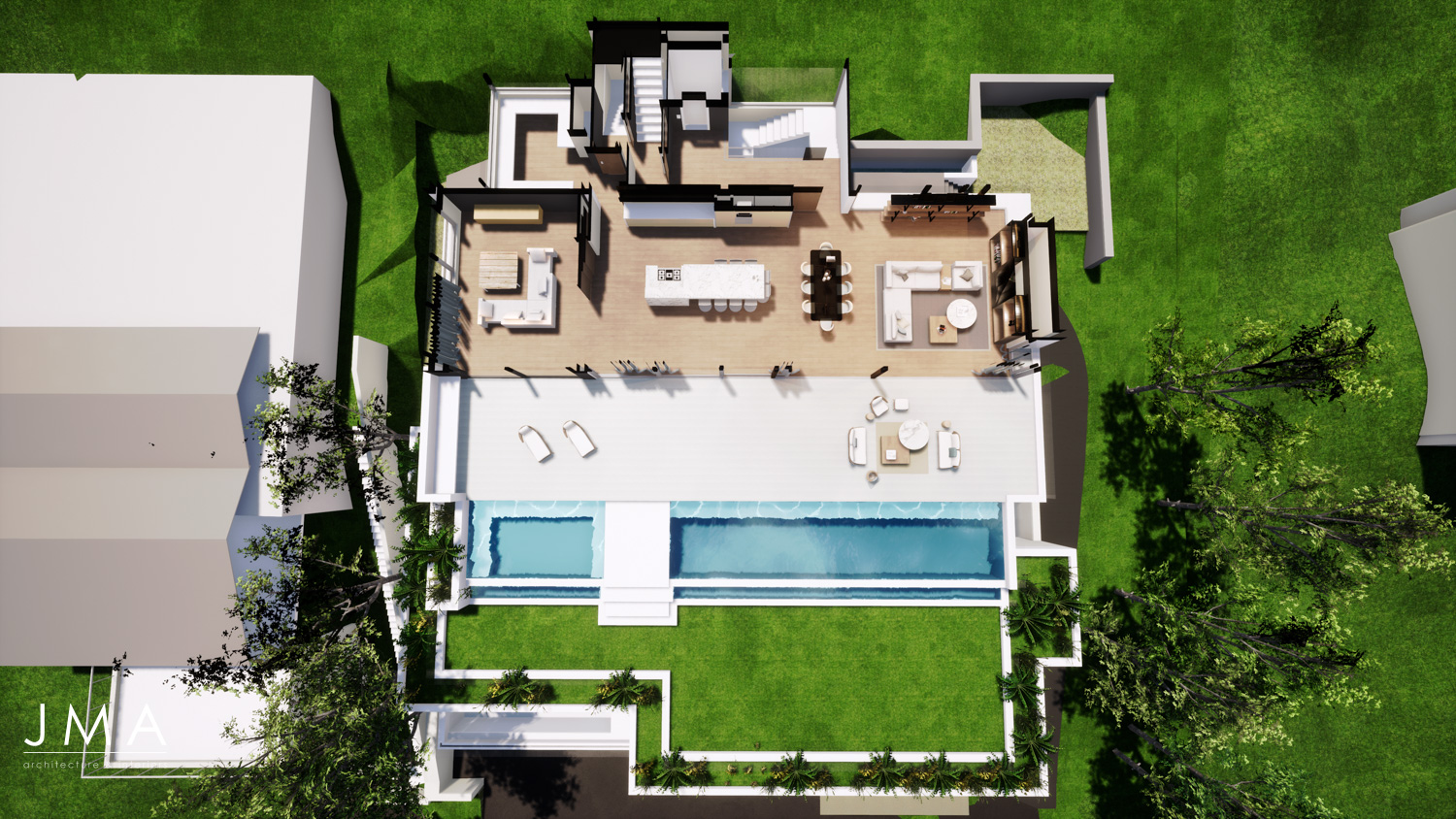

Render of a Campsbay Development Upper Unit Living Level Plan by Jenny Mills Architects

Render of a Campsbay Development of a Upper Unit Bedroom Level Plan by Jenny Mills Architects

Set on a prestigious road in Camps Bay - this large property has been subdivided. We explored alternatives to set the subdivision lines and opted for a panhandle which allows maximum design for width to view. The upper property benefits from use rights on the concrete roof of the lower property for gardens and pool. This extends the actual usable and saleable footprint considerably. The 2 subdivided properties can both have single or double dwellings. The present configuration has a large luxury home on the upper property and a double dwelling on the lower property. We are busy with the alternative of 2 dwellings on each - a total of 4 units.

Rendering credit: Jenny Mills Architects

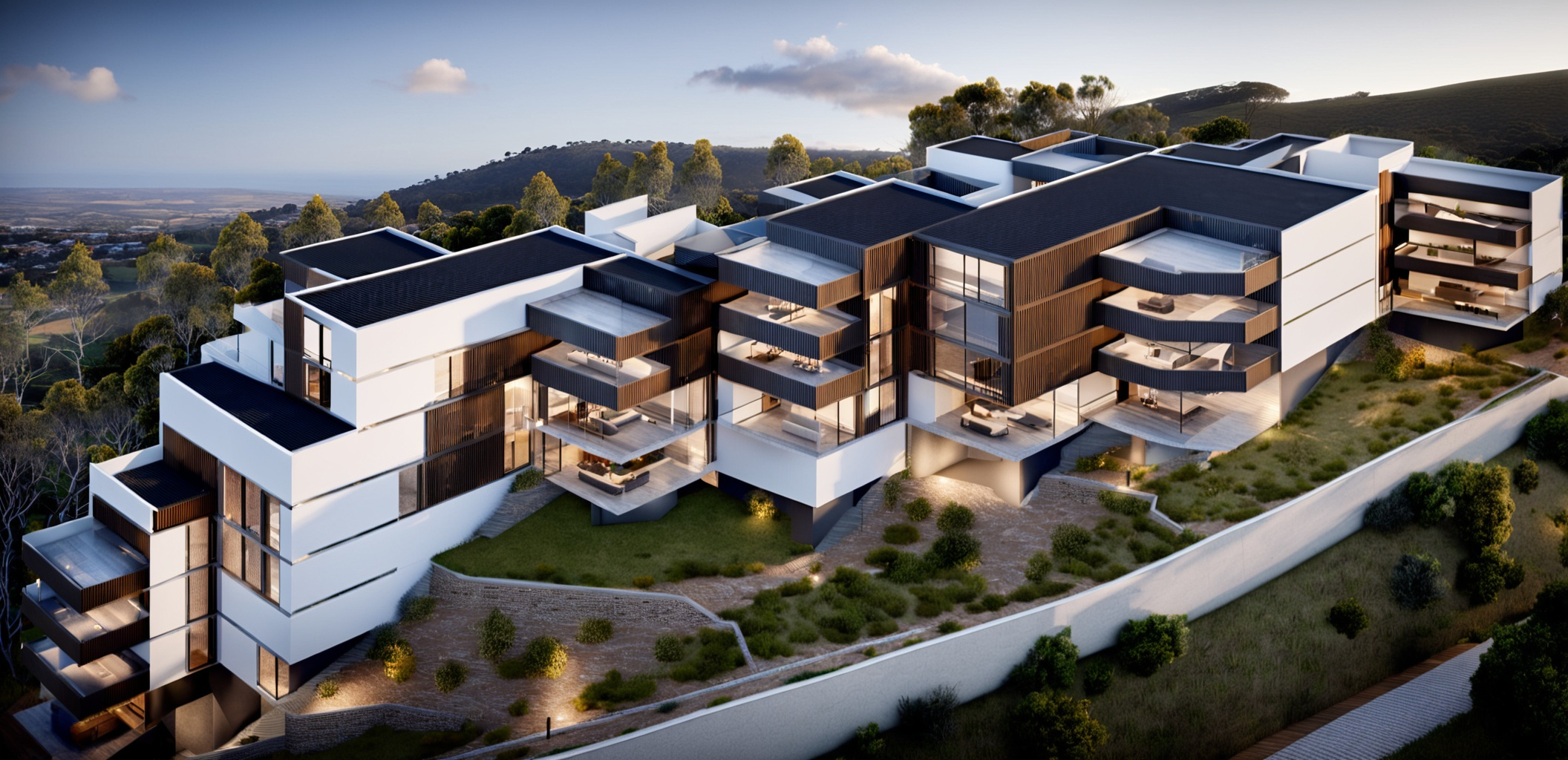

Vergezicht Cape Town Development of Villas & Apartments Perspectives designed by Jenny Mills Architects

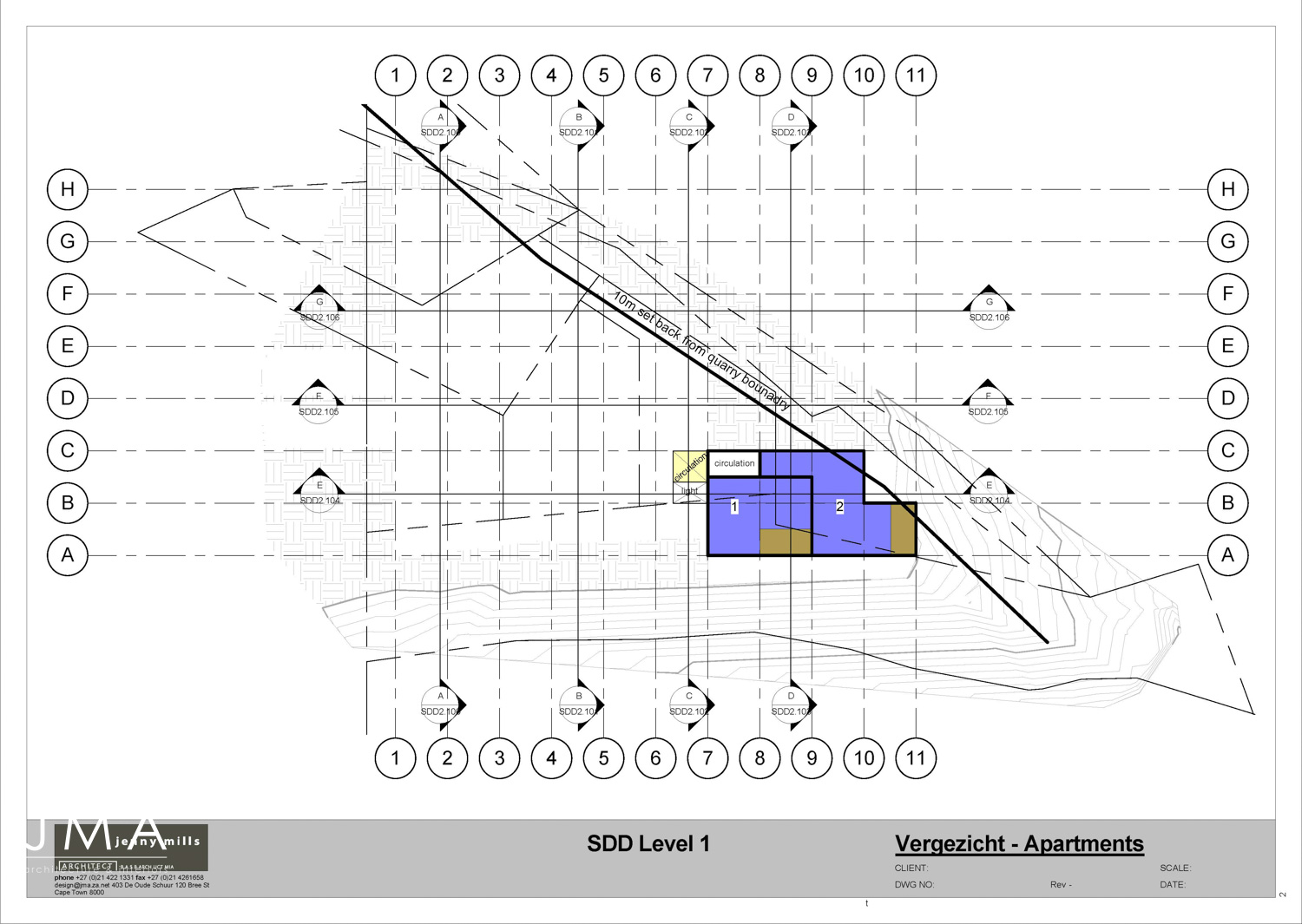

Vergezicht Cape Town Development of Villas & Apartments - Level 1 designed by Jenny Mills Architects

Vergezicht Cape Town development of Villas & Apartments Level 2 designed by Jenny Mills Architects

Vergezicht Cape Town development of Villas & Apartments Level 3 designed by Jenny Mills Architects

Vergezicht Cape Town development of Villas & Apartments Level 4 (Lower Parking) designed by Jenny Mills Architects

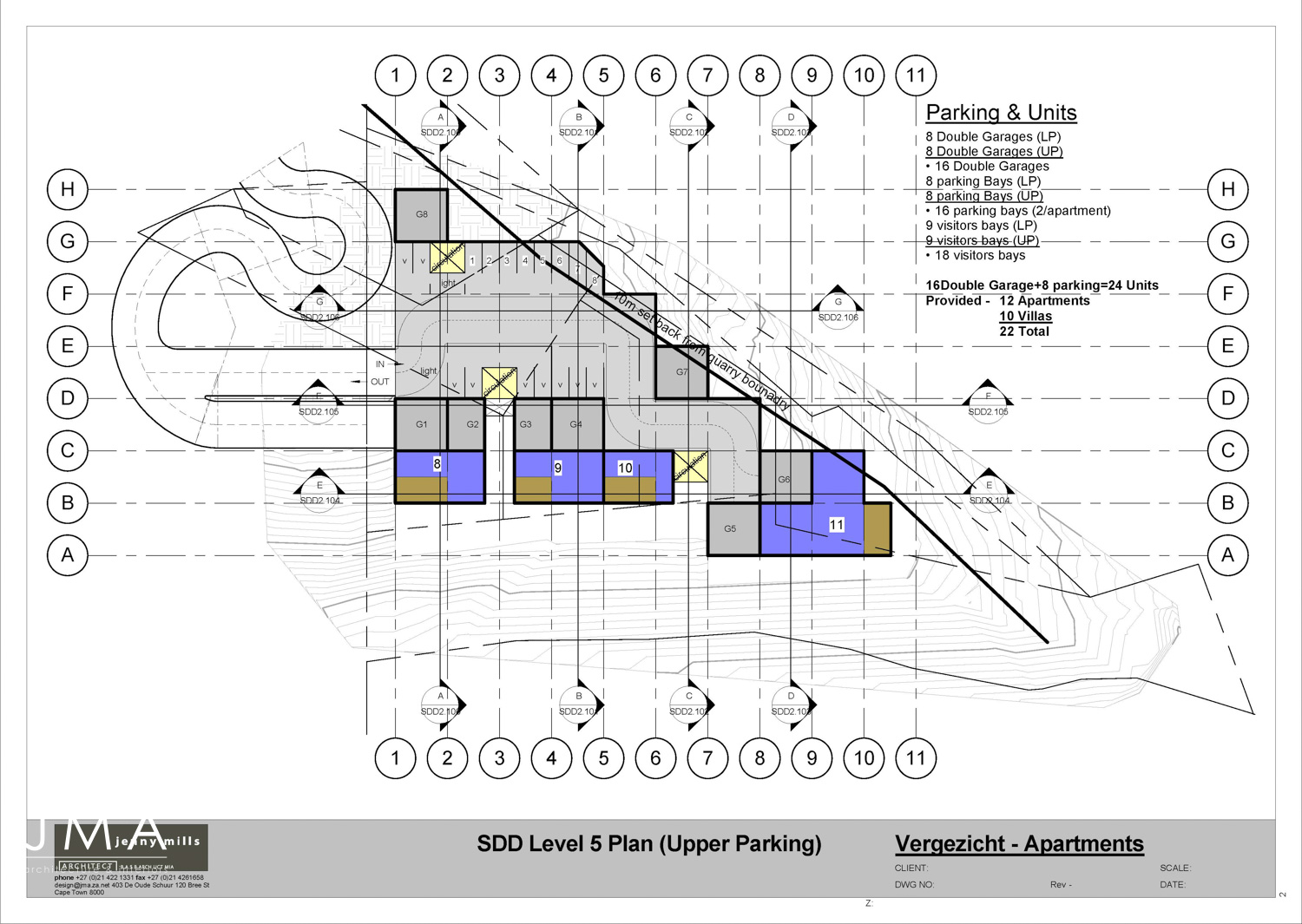

Vergezicht Cape Town development of Villas & Apartments Level 5 Plan (Upper Parking) designed by Jenny Mills Architects

Vergezicht Cape Town development of Villas & Apartments Level 6 designed by Jenny Mills Architects

Vergezicht Cape Town development of Villas & Apartments Level 7 designed by Jenny Mills Architects

Vergezicht Cape Town development of Villas & Apartments Level 8 designed by Jenny Mills Architects

We were briefed to design maximum bulk possible. The steeply sloping site overlooking Tyger Waterfront abuts the Bellville golf course and has lovely views in all directions. Using our Revit software we are able to create modular block 3 D diagrams. These assist with understanding the initial massing of the building.

Design & Drawings by: Jenny Mills Architects
